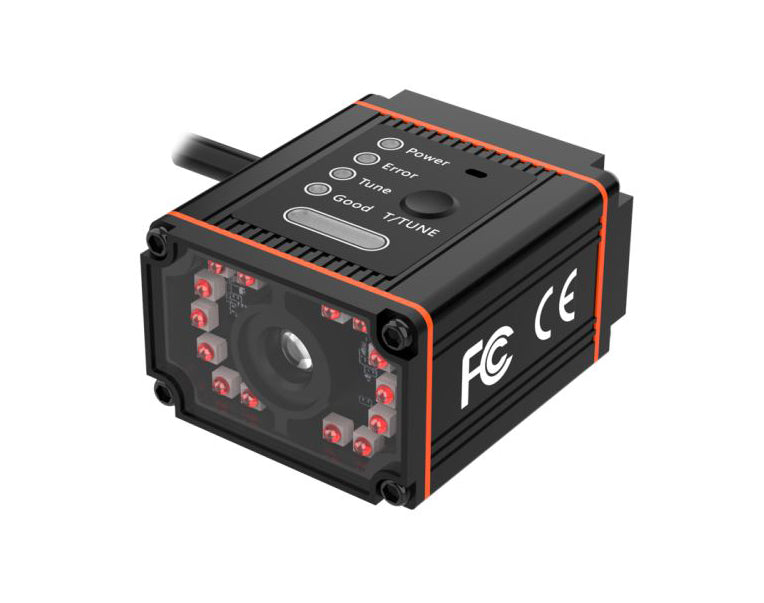

NT-96 Fixed Mount Barcode Scanner

NETUM NT-96 Specification:
Image Sensor: 1280 * 800
Light Source: Red LED/White LED
Decode Capabilities:
1D - UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited Composite Code-A, Composite Code-B , Composite Code-C
2D - PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR ,Aztec ,MaxiCode ,DotCode
Resolution: 1D : ≥4 mil ; 2D : ≥7 mil
GTF-65SR  DOF(mm): Code39 (5 mil) : 55 mm ~ 170 mm  EAN -13 (13 mil) : 50 mm ~400 mm    QR Code (7 mil) : 35 mm ~90 mm
GTF-65HD  DOF(mm): Code39 (3 mil) : 50 mm ~ 90 mm  Data Matrix (7 mil) : 35 mm ~120 mm    QR Code (7 mil) : 35 mm ~110 mm
Imager Field of View 46° (H) x 29° (V)
Skew/Pitch/Roll Skew: ±60° , Pitch: ±60° , Roll: ±360°
Minimum Print Contrast: ≥30% (UPC/EAN 100% , PCS 90%)
Dimension (mm): 36 (W) × 43 (D) × 24 (H)
Supported Host Interfaces: USB (HID ; CDC)  RS232  Ethernet  TCP/UDP/Modbus
User Indicators: Beeper LEDs
Output Signal: 1 Optoisolated Input (NPN / PNG / Relay)
Input Signal: 2 Optoisolated output  Good ; NG
Input Voltage: VDC 5.0-36.0V
Operating Current: 300 mA±5% Typical, 450 mA±5% Max
Standby Current: 100 mA±5%
Operating Temp: -20℃~+55℃
Storage Temp: -40℃~+70℃
Humidity: 5%~95% (non-condensing)
Ambient Light Immunity: 0~8,600 Lux (Candles) 0~100,000 Lux (direct sunlight)
Regulatory: CE EN55022 , FCC Part 15 Class B , CE EMC Class B

NETUM NT-86 Specification:
Image Sensor: 1080 * 1280
Light Source: Red LED
Decode Capabilities:
1D - UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited Composite Code-A, Composite Code-B , Composite Code-C
2D - PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR ,Aztec ,MaxiCode ,DotCode

LONG RANGE (LR)
Resolution:
1D : ≥5 mil ; 2D : ≥10 mil
DOF (mm):
Code39 (5 mil) : 120 mm ~ 320 mm
EAN-13 (13 mil) : 70 mm ~550 mm
QR Code (10 mil) : 170 mm ~220 mm

STANDARD RANGE (SR)

DOF (mm):
Code39 (5 mil) : 65 mm ~ 300 mm
EAN-13 (13 mil) : 70 mm ~ 460 mm
QR Code (7 mil) : 90 mm ~ 200 mm

HIGH DENSITY (HD)

DOF (mm):
Code39 (3 mil) : 60 mm ~ 170 mm
EAN-13 (13 mil) : 70 mm ~ 300 mm
Data Matrix (7 mil) : 50 mm ~ 175 mm
QR Code (7 mil) : 60 mm ~ 165 mm

HYPER HIGH DENSITY (HHD)
Resolution:
1D : ≥3 mil ; 2D : ≥7 mil
DOF (mm):
Code39 (5 mil) : 50 mm ~ 120 mm
Data Matrix (7 mil) : 40 mm ~ 120 mm
QR Code (7 mil) : 40 mm ~ 110 mm

Imager Field of View 28° (H) x 33° (V)
Skew/Pitch/Roll Skew: ±60° , Pitch: ±60° , Roll: ±360°
Minimum Print Contrast: ≥32% (UPC/EAN 100% , PCS 90%)
Dimension (mm): 44 (W) × 53 (D) × 29 (H)
Supported Host Interfaces: RS232, Ethernet  (TCP Client/TCP Server/Modbus TCP)
User Indicators: Beeper LEDs
Input Voltage: VDC 12-24
Operating Current: 180 mA±5% Typical, 800 mA±5% Max
Standby Current: 100 mA±5%
Operating Temp: 0℃~+50℃
Storage Temp: -30℃~+70℃
Humidity: 5%~95% (non-condensing)
Ambient Light Immunity: 0~8,600 Lux (Candles) 0~100,000 Lux (direct sunlight)
Regulatory: CE EN55022 , FCC Part 15 Class B , CE EMC Class B
