NT-EM63 Embedded NFC Scanning Engine
NT-EM63 Embedded NFC Scanning Engine
Preço normal
$79.00 USD
Preço normal
$129.00 USD
Preço promocional
$79.00 USD
Preço unitário
por
Frete calculado no checkout.
Não foi possível carregar a disponibilidade de retirada.
CMOS

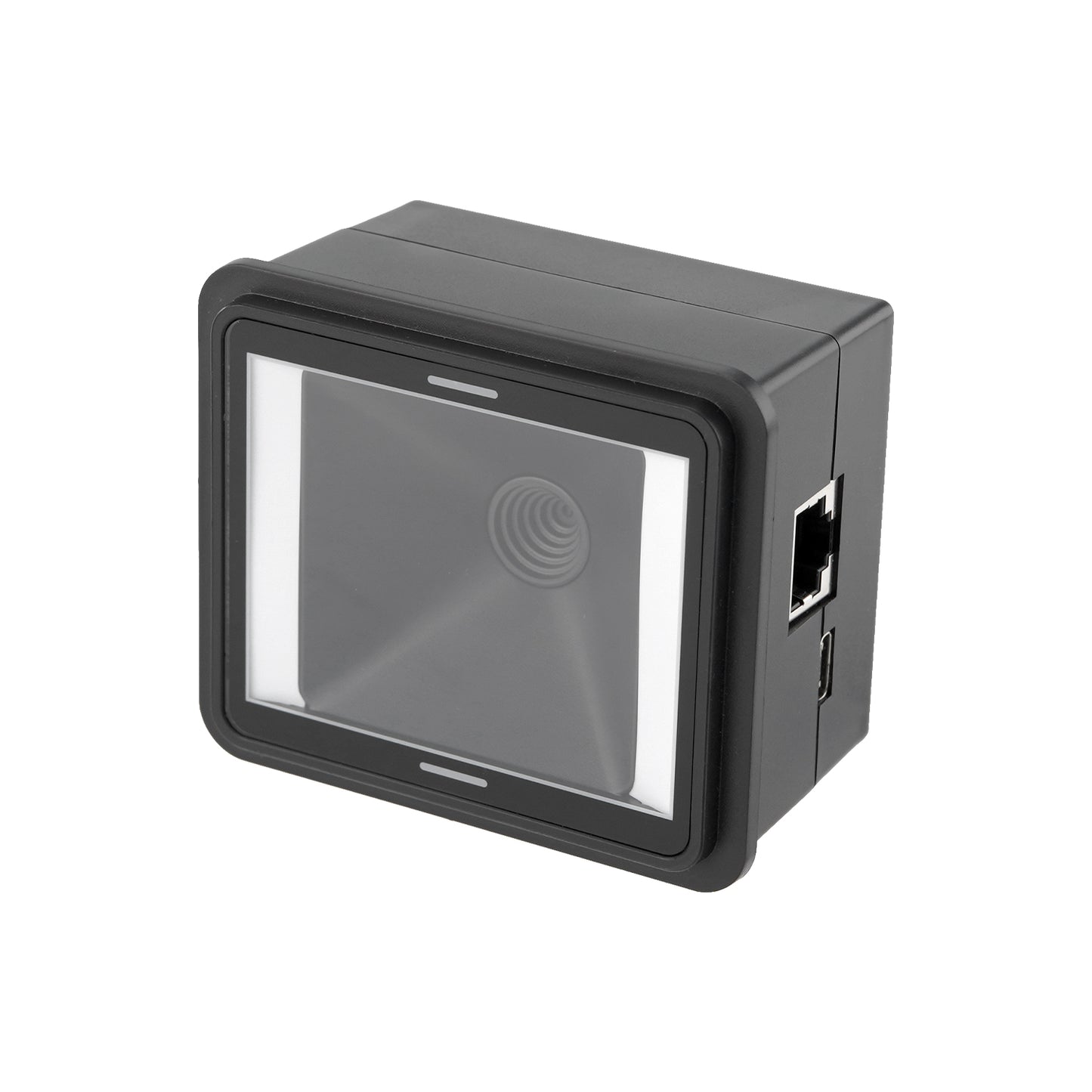

1. Product Overview
NT-EM63 Embedded Scanning Engine is designed for integration into kiosks, terminals, and other OEM devices.
It delivers high-performance 1D/2D barcode scanning, supports a wide voltage range, and offers multiple communication interfaces for flexible integration.
Key Features
- Compact and lightweight design (only 70g)
- High compatibility with 1D & 2D symbologies
- Multiple interface options (USB / TTL / RS232 / RS485)
- Excellent motion tolerance and scanning sensitivity
- Industrial-grade durability and temperature endurance
2. Technical Specifications
2.1 Scanning Performance
| Item | Specification |
|---|---|
| Image Sensor | 640 × 480 CMOS |
| Lighting | White LED, 6500K |
| Supported Symbologies |
2D: PDF417, Data Matrix, QR Code, HanXin, AZTEC, MaxiCode 1D: EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 128, ISBN, Code 93, Code 11, UCC/EAN-128, GS1 Databar, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, Standard 2 of 5, MSI-Plessey, GS1 Composite Code, etc. |
| Reading Accuracy* | 1D ≥ 5 mil, 2D ≥ 7 mil |
| Typical Depth of Field* | 10–130 cm (Alipay QR Code) 20–100 cm (EAN13, 13 mil) |
| Symbol Contrast Sensitivity* | ≥ 20% |
| Barcode Sensitivity* | Pitch ±55°, Skew ±55°, Roll 360° |
| Angle of View | Horizontal 66°, Vertical 50° |
2.2 Mechanical / Electrical Parameters
| Item | Specification |
|---|---|
| Communication Interface | USB, USB HID, USB COM, TTL COM (Customizable: RS232, RS485) |
| Dimensions (mm) | 77.8 (D) × 66.4 (W) × 44.7 (H) |
| Weight | 70 g |
| Operating Voltage |
Power Supply 1: 5–16V (Customizable) Power Supply 2: 4–6V (Default) ⚠️ Only one power source may be used at a time. |
| Rated Current (Typical) | <190 mA @ 5V input |
2.3 Environmental Parameters
| Item | Specification |
|---|---|
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C |
| Working Humidity | 5% ~ 95% (Non-condensing) |
| Ambient Light | 0 ~ 100,000 Lux |
2.4 Thermal Shock Resistance
| Item | Specification |
|---|---|
| Maximum Temperature | +60°C (140°F) |
| Minimum Temperature | -20°C (-4°F) |
| Cycle Mode | 30 min high temperature / 30 min low temperature |
| Total Cycles | 24 |
2.5 Mechanical Shock Resistance
| Item | Specification |
|---|---|
| Vibration | 2000 G, 0.7 ms, half-sine, 3 axes |
| Drop Test | 1.2 m drop onto concrete floor |
3. Communication Port Description
3.1 RJ45 Interface Wiring Diagram
| Pin No. | Signal | Type | Description |
|---|---|---|---|
| 1 | NC | - | Not connected |
| 2 | VCC | Power | 4–6V (Default) / 5–16V (Customizable) |
| 3 | D– | I/O | USB D– Signal |
| 4 | D+ | I/O | USB D+ Signal |
| 5 | GND | - | Ground |
| 6 | IO-Y | I | TTL-TX (Default); Customizable RS232-TX or RS485-B |
| 7 | IO-X | O | TTL-RX (Default); Customizable RS232-RX or RS485-A |
| 8 | NC / RESET | - | Default NC; Customizable Reset Input (Low level active, ≥100 μs low pulse resets device) |
| 9 | nTrig | I | Trigger Input, Low level active |
| 10 | NC | - | Not connected |
3.2 Standard Type-C USB Interface
Power is supplied through a Type-C USB cable.
Ensure the power voltage remains within 4.5V–6.5V.
Do not exceed this range to avoid damage.
