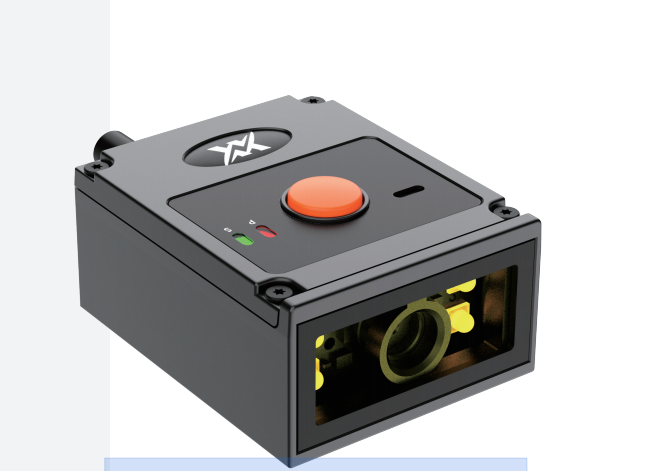

NTF-60E Industrial Fixed Mount Barcode Scanner
Product Overview
The NTF-60E features a compact and lightweight design for easy installation. It delivers excellent decoding performance on low-contrast, damaged, distorted, and poorly printed barcodes, providing highly flexible and reliable barcode reading.
120 FPS High-Speed Scanning
Equipped with a high-performance image sensor, the NTF-60E is ideal for dynamic and high-speed barcode reading applications.
High-Resolution Image Sensor
Featuring a 1280 × 960 (1.2MP) high-resolution image sensor, the scanner can read smaller and higher-density barcodes at the same working distance.
Convenient I/O Interface
Supports external trigger scanning through I/O cables, improving operational efficiency and enabling more accurate barcode reading.
Industrial IP65 Protection
Constructed with a durable zinc-alloy housing and rated IP65, providing protection against dust ingress and low-pressure water jets.
High-Speed Conveyor Reading
Designed for industrial environments requiring high-speed barcode reading on production lines and automated equipment.
Reliable operation. Stable performance.
Technical Specifications
Scanning Performance
| Item | Specification |
|---|---|
| Sensor Resolution | 1280 (H) × 960 (V), 1.2MP CMOS Sensor |
| Aiming | High-Brightness Red Dot |
| Illumination | 4 LEDs, 3000K Warm White Light |
| Reading Accuracy | 1D: ≥ 3 mil, 2D: ≥ 5 mil |
| Print Contrast | ＞20% PCS (UPC/EAN 100%) |
| Field of View | Horizontal 46° (H), Vertical 34° (V) |
| Scan Modes | Manual Trigger, Auto Sense, Continuous Mode, Pulse Mode (External Trigger) |
Supported Symbologies
1D Barcodes
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- Code 128
- Code 39
- Code 93
- Codabar
- Plessey
- MSI
- Interleaved 2 of 5
2D Barcodes
- Data Matrix
- QR Code
- Micro QR
- PDF417
- MicroPDF417
- Aztec
- MaxiCode
Typical Depth of Field
| Barcode Type | Reading Distance |
|---|---|
| Code 39 (3 mil) | 65 mm ~ 130 mm |
| Code 39 (5 mil) | 45 mm ~ 220 mm |
| QR Code (5 mil) | 60 mm ~ 120 mm |
| UPC-A (13 mil, 100%) | 40 mm ~ 450 mm |
Test Conditions: Ambient temperature 23°C, illumination 300 Lux incandescent light, using MEXXEN standard test samples.
Mechanical & Electrical Specifications
| Item | Specification |
|---|---|
| Dimensions | 39.5 × 50 × 22.6 mm (excluding protruding parts) |
| Weight | Approx. 80 g (excluding cable) |
| Communication Interface | Ethernet (TCP Client / TCP Server / Modbus TCP), RS232 |
| Trigger Input | 1 Opto-Isolated Input (NPN / PNP / Relay) |
| Output Signal | 2 Opto-Isolated Outputs (GOOD / NG) |
| Indicators | Buzzer and LED Indicators |
| Operating Voltage | 9V ~ 24V DC |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | -10°C ~ +50°C |
| Storage Temperature | -40°C ~ +70°C |
| Humidity | 5% ~ 95% RH (Non-condensing) |
| Drop Resistance | 1.5 m |
| Protection Rating | IP65 |
Typical Applications
- Mobile Phone Manufacturing & Assembly
- Solar Photovoltaic Production
- Intelligent Embedded Public Equipment
- Electronic Test Equipment Integration
- Medical Device Integration
- Metal Processing & Manufacturing
- Automated Production Lines
- Industrial Traceability Systems
