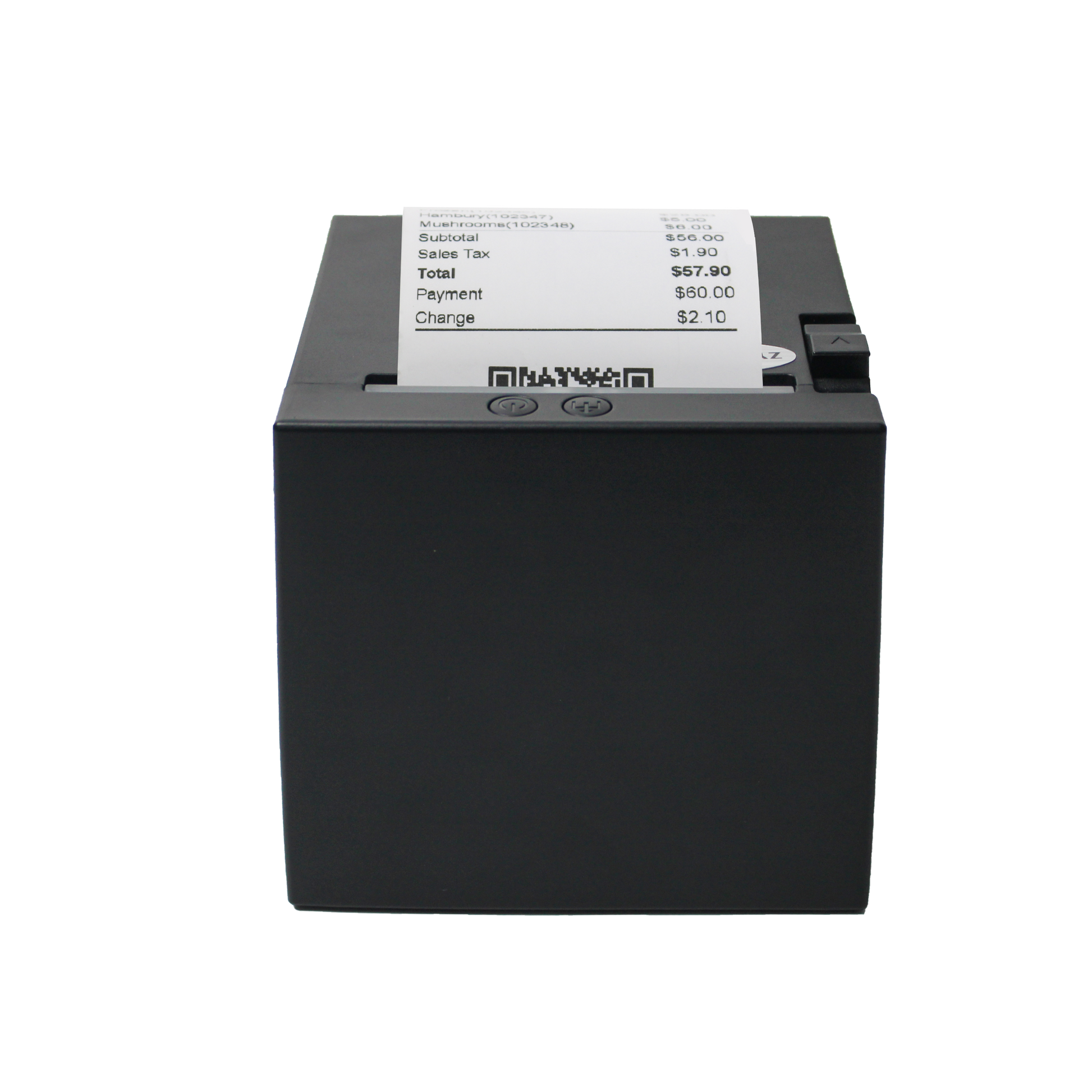

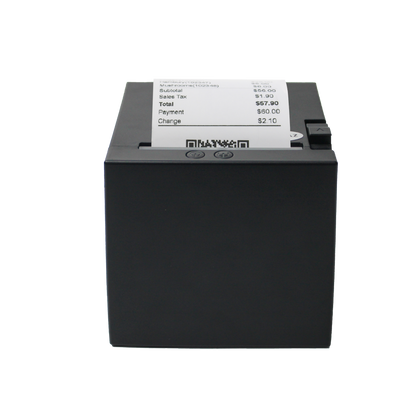

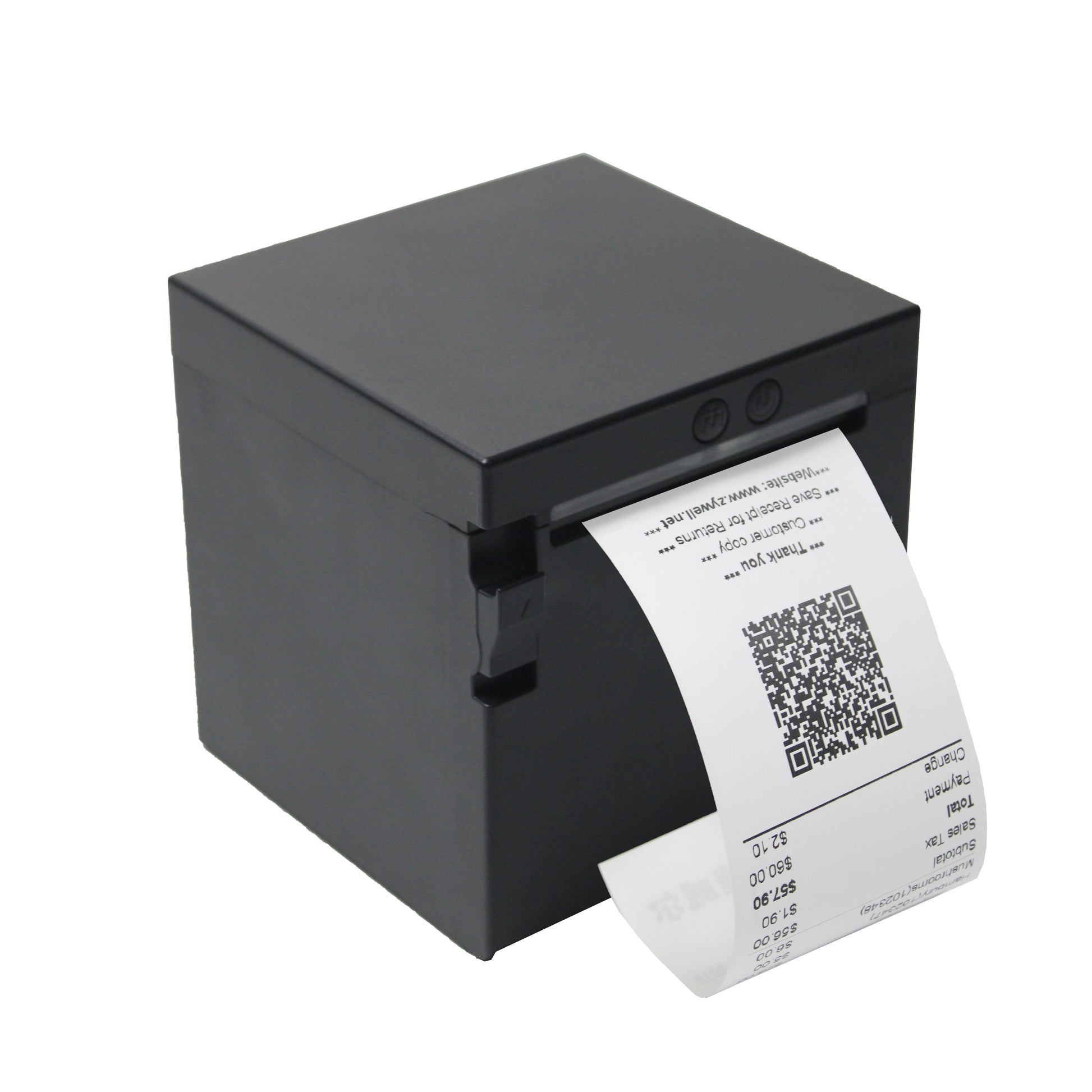

POS Thermal Receipt Printer, 80mm/58mm Dual Mode, USB+LAN/WiFi/Bluetooth Optional, Front & Top Paper Exit, Compact High-Speed POS Printer for Retail Restaurant, Black
1️⃣ Space-Saving Compact Design
30% smaller than traditional POS printers, the NT-861 features a modern square design that saves valuable counter space—perfect for retail stores, restaurants, and small business environments.
2️⃣ Dual Paper Size Compatibility (80mm & 58mm)
Adjustable paper bin supports both 80mm and 58mm thermal receipt paper, giving you flexibility across different POS systems and business needs without switching devices.
3️⃣ Flexible Front & Top Paper Output
Designed with both front and top paper exit options, this receipt printer adapts easily to different installation setups while reducing paper jams and improving daily workflow efficiency.
4️⃣ Multiple Connectivity Options
Available with USB + LAN / USB + WiFi / Bluetooth (optional), ensuring seamless integration with various POS systems, cash registers, and tablets across retail and hospitality environments.
5️⃣ Durable Print Head & Stable Performance
Equipped with a wear-resistant coated print head for long-lasting use, delivering consistently clear prints, low-noise operation, and reliable performance even during high-volume transactions.
- Model NT-861
- Printing Print Method Direct Thermal
- Print Speed 260mm/s
- Resolution 203dpi
- Printing Width 72mm(default)80mm(Max)
- Discharge direction "Top paper" and "front paper" can be adjusted in both directions
- Paper separator (option) "58mm (57.5 ± 0.5mm)
- 80mm (79.5 ±0.5mm)"
- Interface USB+LAN/USB+LAN+WIFI/BT (optional)
- Page Mode Support
- Memory Input buffer 2M
- NV Flash 256kbytes
- Fonts Font A 12x24
- Font B 9x17
- Chinese GB18030,BIG5 24x24dots
- Character Size (mm) Font A: 1.5×3.0mm; Font B: 1.1×2.1mm; Simple/Traditional: 3.0×3.0mm
- Japanese/Korea Japanese JIS、Korean KSC5601 (optional)
- User-defined Support
- Barcode 1D UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128
- 2D PDF417, QR code
- Detection Sensors Lack of paper detection, open cover detection, overtemperature detection
- Power Supply Input AC 100V-240V 50/60HZ
- Output DC 24V/2.5A
- Paper Paper Type Thermal Receipt Paper
- Paper Width "58mm (57.5 ± 0.5mm)
- 80mm (79.5 ±0.5mm)"
- Paper Thickness 0.04~0.08mm
- Roll Dia Max. Ø 82 mm
- Paper Load Easy paper loading
- Paper Cut Auto-cutter(half cut)
- Physical Characteristics Working Condition 5°C~45°C, 10%~90%RH
- Storage Condition -20°C-60°C,10%~90%RH
- Dimensions 129(D)x128(W)x131.6(H)mm
- colour All Black, white gold, Black gold (default)
- Net weight 1kg Gross weight 1.7kg
- Reliability Printing head 150KM
- cutter 2million
- Accessories USB data cable, Power adaptor, Power cord, Paper roll, CD, Manual, Paper separator、Serial cable (optional)
- Packing Individual box Dimension 23*15.5*14.4cmcm(LXWXH） 1unit/carton
- Master carton Dimension 48*31*49cm(LXWXH） 12units/carton
- OS Emulation ESC/POS
- Driver Windows/Linux/Mac
- SDK Android/IOS/Windows
- Safety standard CCC\ ROHS\CE
