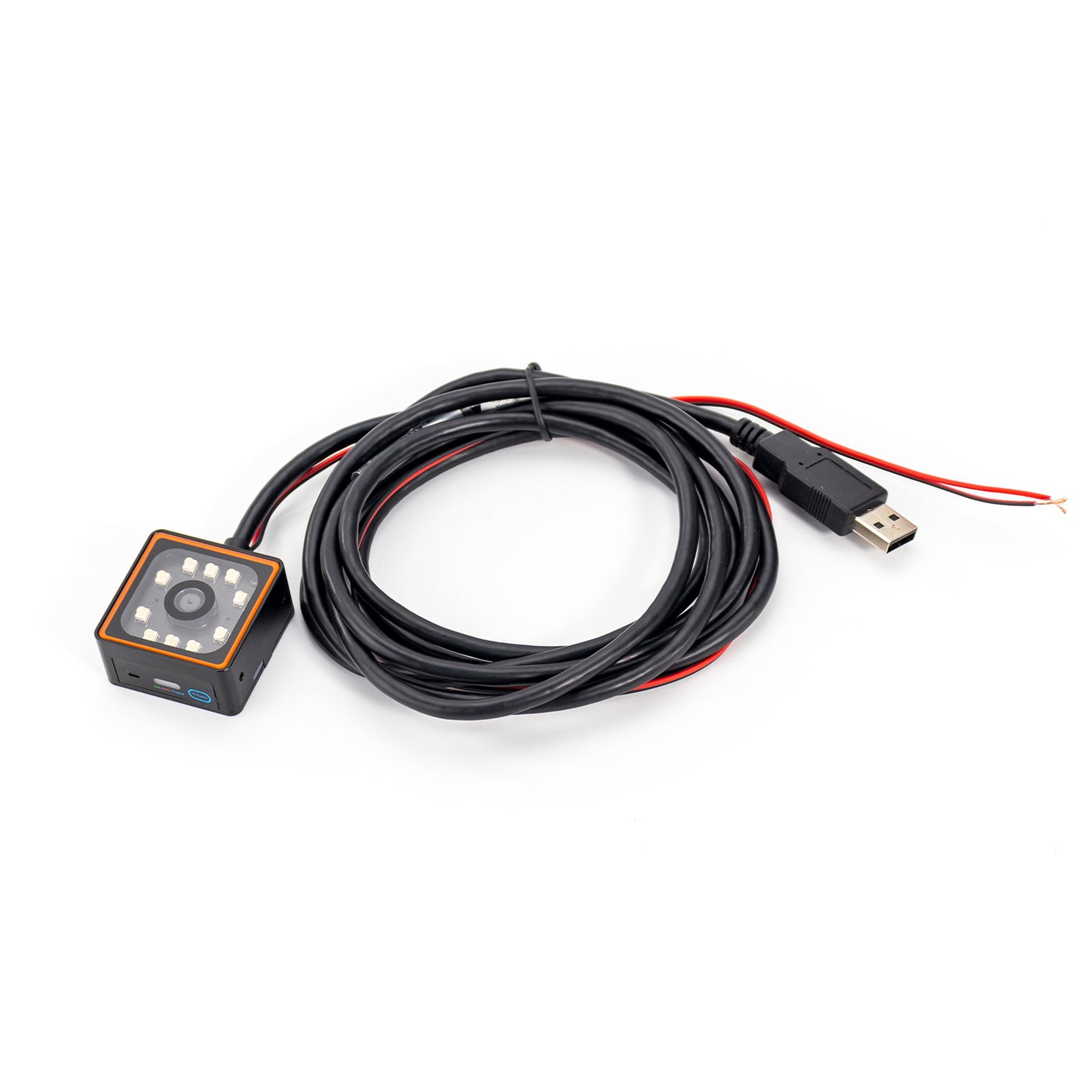

Performance and Specifications
Resolution: 1080 (H) * 1280 (V), 1.3M high-performance sensor
Illumination: 10 LEDs (3 on top, 3 on bottom, 2 on each side), red light source
Main Chip: ARM Cortex-A7, 1.2G high-performance CPU, MIPI interface
Aiming Indicator: High-brightness red dot aiming
Reading Modes: Auto-sensing, continuous mode, pulse mode (externally triggered)
Field of View Angle: Horizontal (H) 36°, Vertical (V) 43°
1D Barcode Types Supported:
UPC A, UPC E, EAN 8, EAN 13, Code 128, Code 39, Code 93, Code 32,
Code 11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5,
Matrix 2 of 5, Straight 2 of 5, Pharmacode, RSS-14, RSS-14 Expanded,
RSS-14 Limited, Composite Code
2D Barcode Types Supported:
PDF 417, Micro PDF 417, Data Matrix, QR, Micro QR, Aztec, MaxiCode
Motion Tolerance:
Continuous scan mode: 0.5 meters per second
External trigger mode: 1.0-1.5 meters per second
Data Interface:
Communication: RS232, USB (HID; CDC), EA100: Ethernet / TCP/IP
External Input: External trigger line or control box: 1 opto-isolated input (NPN / PNG / relay)
External Output: Versions with control box: 2 opto-isolated outputs (Good; NG)
Power Supply:
Direct connection version: 5VDC, control box: 5-24 VDC (Ethernet port supports POE)
Physical Characteristics
Dimensions: 38(W) × 38(D) × 19(H) mm, excluding SR part
Weight: Approximately 40g for main unit, not including cables
Housing Material: Aluminum alloy
Enclosure Rating: IP65
Reliability
Storage Temperature: -40℃ to +70℃
Operating Temperature: -10℃ to +50℃
Relative Humidity: 5% to 95% (non-condensing)
Ambient Light: 0-8,600 lux (fluorescent), 0-100,000 lux (daylight)
Safety Standards: CE EN55022, FCC Part 15 Class B, CE EMC Class B
Operational Vibration: 10150HZ, 0.5G, 3 axes, 1 min/oct, 1 cycle/axis
Endurance Vibration: 10150HZ, 2G, 3 axes, 1 min/oct, 20 cycles/axis
Typical Barcode Reading Depth
Adjustable Focus Range:
HD / SR
Reading Precision:
1D: ≧3 mil; 2D: ≧5 mil (HD)
1D: ≧3 mil; 2D: ≧7 mil (SR)
Typical Depth of Field (DOF):
HD:
Code 39 (3 mil): 40140 mm
QR (5 mil): 45105 mm
Code 39 (5 mil): 35210 mm
EAN-13 (13 mil): 30320 mm
SR:
Code 39 (3 mil): 45150 mm
Code 39 (5 mil): 30255 mm
EAN-13 (13 mil): 30~500 mm
*Test Conditions: Ambient temperature = 23℃, ambient lighting = 300 lux, using company-specified test codes.
**Test Conditions: Testing distance = (minimum depth of field + maximum depth of field) / 2, ambient temperature = 23℃, ambient lighting = 300 lux.
