M1 USB 1D Laser Barcode Scanner

$19.99 USD
$19.99 USD $29.99 USD
Shipping calculated at checkout.
$15.99

Buy at discounted prices

Minimum Qty Maximum Qty Discount
2 4 10% off
5 9 12% off
10 49 15% off
50 99 17% off
100 + 20% off

Small Batch Purchasing

We support small-batch purchasing, with flexible minimums starting from 5–10 units depending on the product. Pricing varies based on order quantity and the collaboration model. Please feel free to contact us for a quote.

Delivery and Shipping

Order Processing

Orders are typically processed within 1–3 business days.

Shipping Options

We offer two shipping methods: Standard Shipping and Expedited Shipping.

Small-batch orders are shipped by Expedited Shipping by default.

If an item is temporarily out of stock, production will be arranged immediately. Estimated shipping time is 1–10 days.

For full details, please review our Shipping Policy or contact us at any time.

30 Days Returns

If you’re not completely satisfied with your purchase from NETUM, you can return it for a replacement, exchange, or refund at any time within 30 days of purchase.
Read our return policy here.

Warranty

1 year warranty. No matter where you purchase it, we provide 24/7 customer support.

Overview

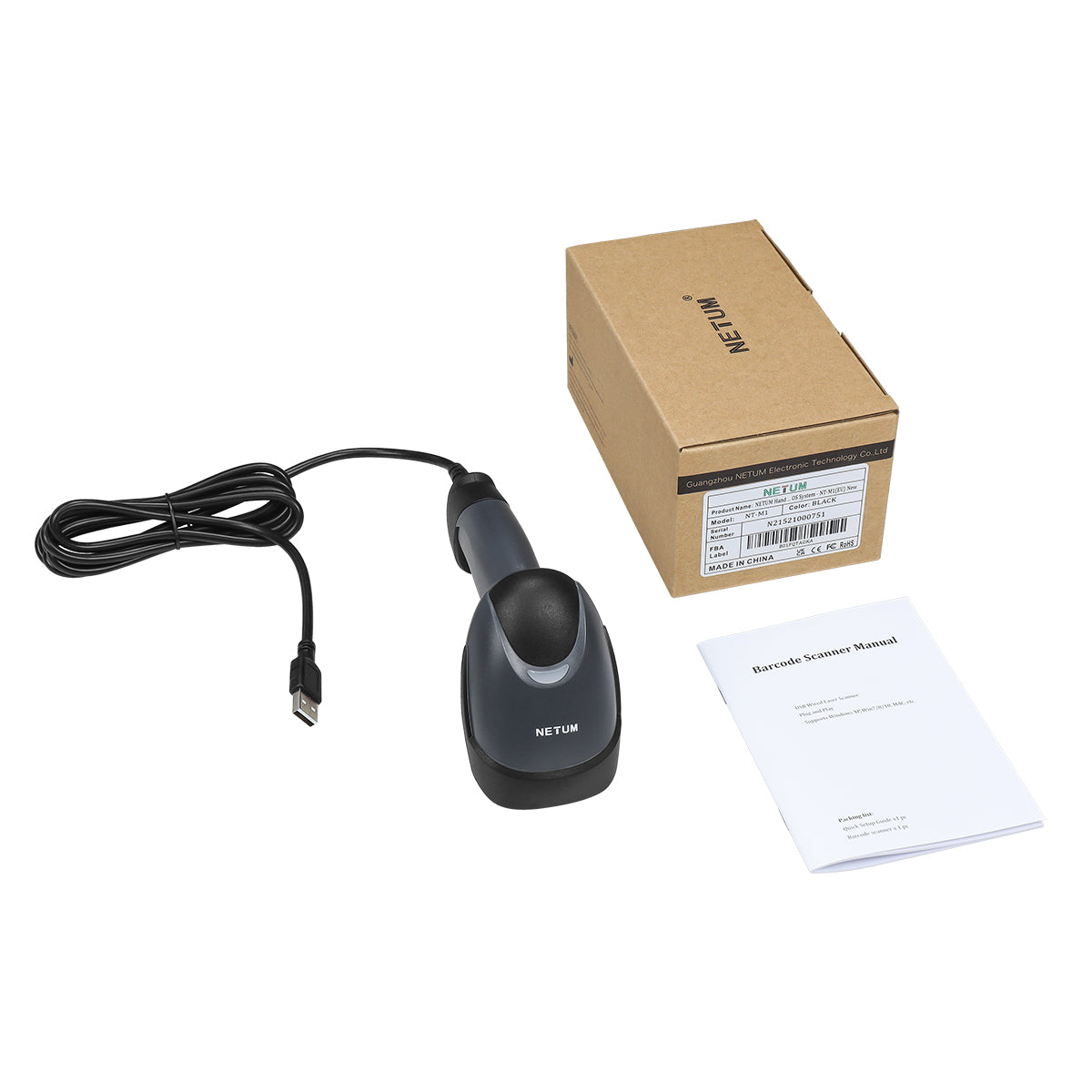

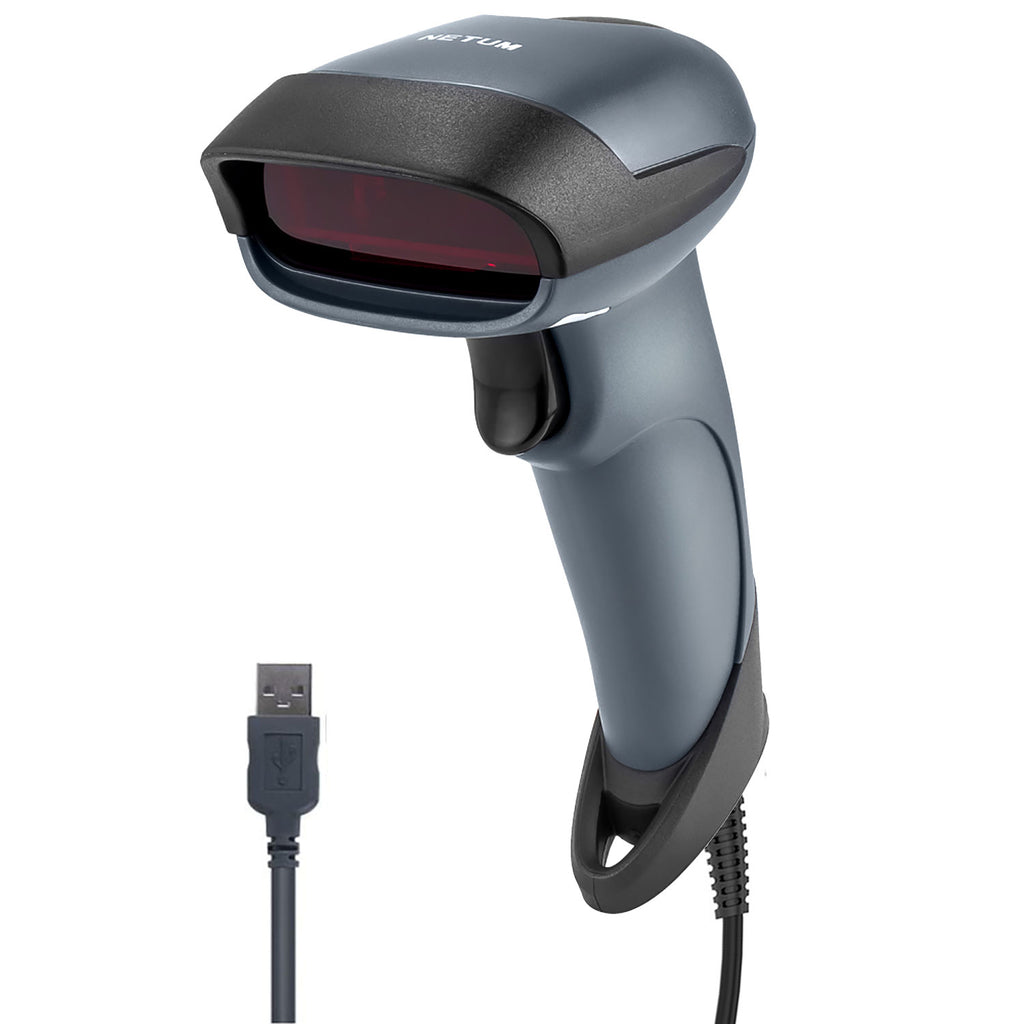

The NETUM M1 is a wired USB laser scanner for printed 1D barcodes. Its handheld design and trigger operation suit everyday product and inventory label entry. Connect it to a compatible computer or POS terminal and scan into the application's supported input field.

Key Features

  • Laser reading for linear barcodes
  • USB wired connection
  • Supports common formats including UPC, EAN and Code 128
  • Handheld trigger operation

M1 Barcode scanner specifications

See what this scanner can do.

Explore the performance, connectivity, power, and durability details that matter when choosing a scanner for your workflow.

Model
M1
Decode Capabilities
1D
Scan Engine Technology
Laser
Illumination
Visible laser diode, wavelength 630-650 nm 265 lux (130 nm) 0-100,000 lx
Acquisition Rate
150 scans/s
Minimum Element Resolution
≥5 mil
Minimum Print Contrast
≥35%
Field of View
34° V x 46° H(Vertical x Horizontal)
Pitch / Skew / Roll Tolerance
±65°, ±60°
Depth of Field
5 mil: 40-105 mm 10 mil: 10-250 mm 15 mil: 23-380 mm 20 mil: 35-490 mm 30 mil: 30-650 mm

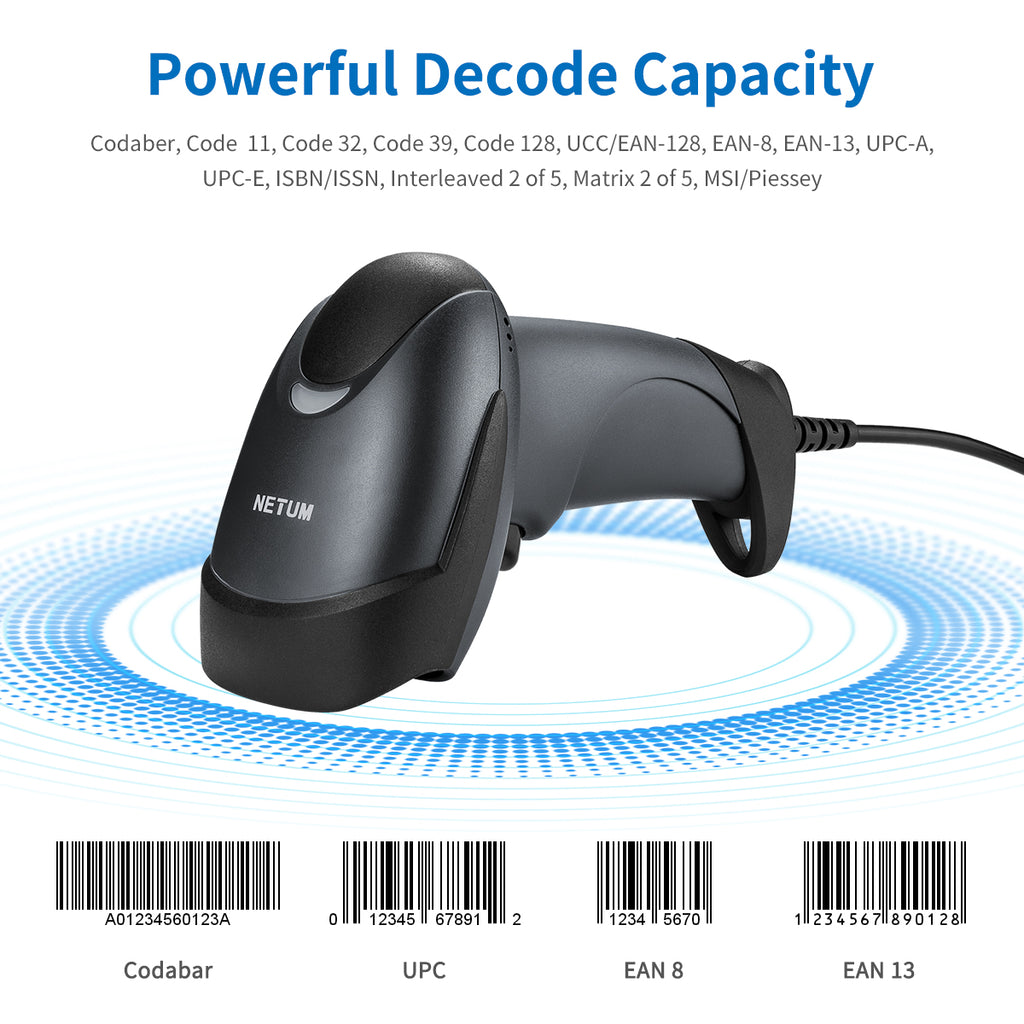

Supported Symbologies
UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN/ISSN, 39, 39 (Full ASCII), 32, Trioptic 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), 128, UCC/EAN128, ISBT128, 93, 11 (USD-8), MSI/Plessey, UK/Plessey, (is: RSS) family
Trigger Modes
Manual trigger, automaticContinuous mode
View all specifications Show fewer specifications
Connectivity
Wired
Host Interfaces
USB Standard USB (customRS232)
Operating Voltage
(3.3V~4.2V) ±5%

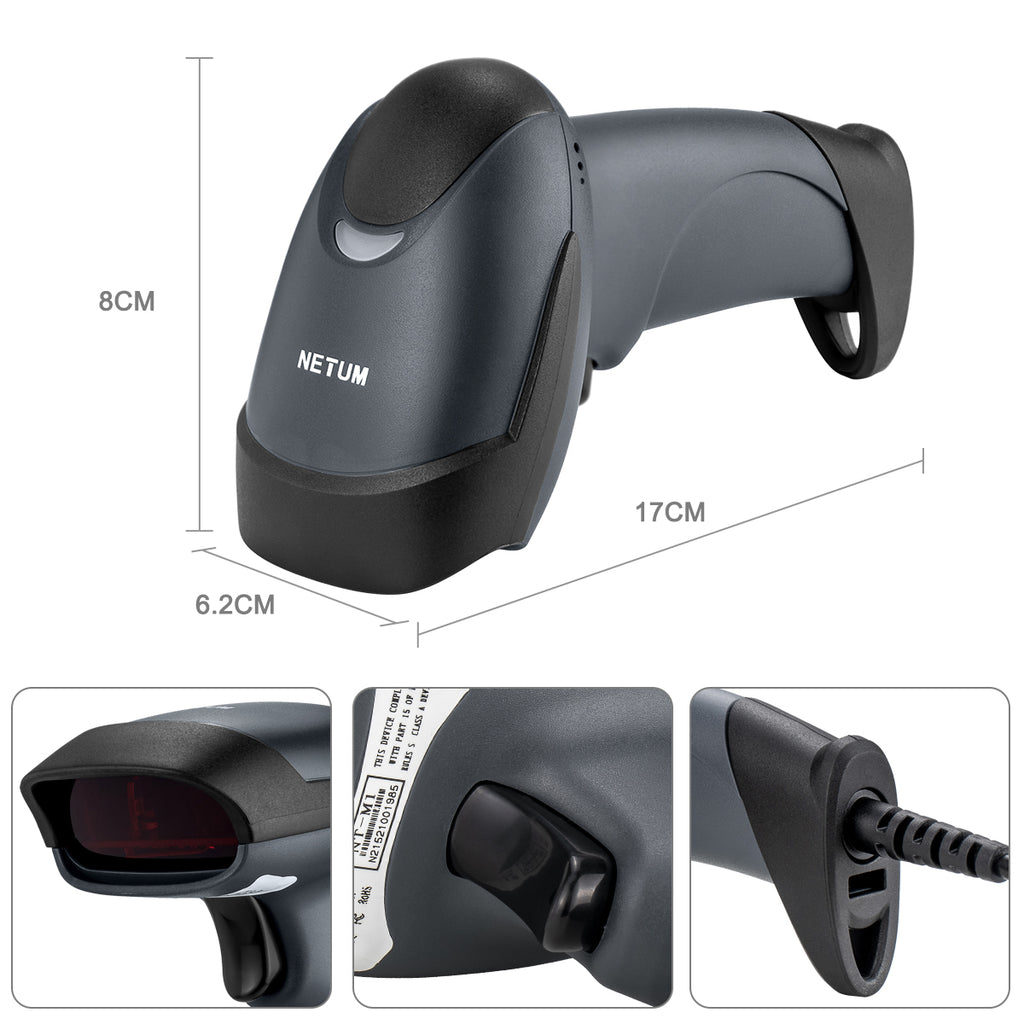

Dimensions (L × W × H)
L × W × H (mm):165 × 65 × 90 mm
Weight
Approx. 168 g
Enclosure Material
ABS+TPU
Color Options
Black
Cable Length
1.8 m
Cradle / Stand Included
No
User Feedback
Buzzer, LED indicator
Drop Resistance
2 m free-fall drop
Operating Temperature
0°C-60°C
Storage Temperature
-40°C-80°C
Relative Humidity
5%-90%
Ambient Light Immunity
0-100,000 lx
Regulatory Approvals
CE, RoHS, FCC
Download model specification sheet

Downloads

Manuals, software, and developer resources selected for this exact model.

2 resources

M1 User Manual

M1
Document
Download the M1 user manual for setup, configuration, and operating instructions.
Download manualPDF

Will this barcode scanner work with my computer, mobile device, or POS system?

Usually, yes—if the connection interface matches your device or the scanner supports USB HID keyboard mode. Some POS systems only accept approved USB VID/PID values, so they may reject an otherwise compatible HID scanner. Check which type your POS uses, or send us the POS model and software name before ordering.

Which barcodes can it read, and can it scan from a phone or computer screen?

Barcode support varies by model. Devices with a CMOS scanning engine can scan barcodes on a computer screen; otherwise, they cannot.

How do I connect the scanner?

For a wired scanner, connect the USB cable and start scanning—most models are ready to use right away. For a wireless scanner, follow the model’s manual to connect by 2.4G receiver or Bluetooth. Pairing steps can differ between models, so use the correct guide in Downloads.

Can I scan directly into Excel, inventory software, or a POS system?

Yes, in most cases. When the scanner is using HID keyboard mode, scanned data appears wherever the cursor is active, such as in Excel, inventory software, or a POS input field. Workflows that use serial communication, an API, or an SDK may need extra setup. Check the communication modes in the Specifications and any available software or SDK in Downloads.

The scanner beeps, but no data appears—what should I check?

A beep usually means the barcode was read, but the data is not reaching the active field. Click inside a blank field in Notepad, TextEdit, or your POS and scan again. Then check the USB cable, 2.4G receiver, or Bluetooth connection and confirm the correct interface mode. If it still does not work properly, please contact us and provide the scanner model, a description of the problem, and the operating system and application name.
