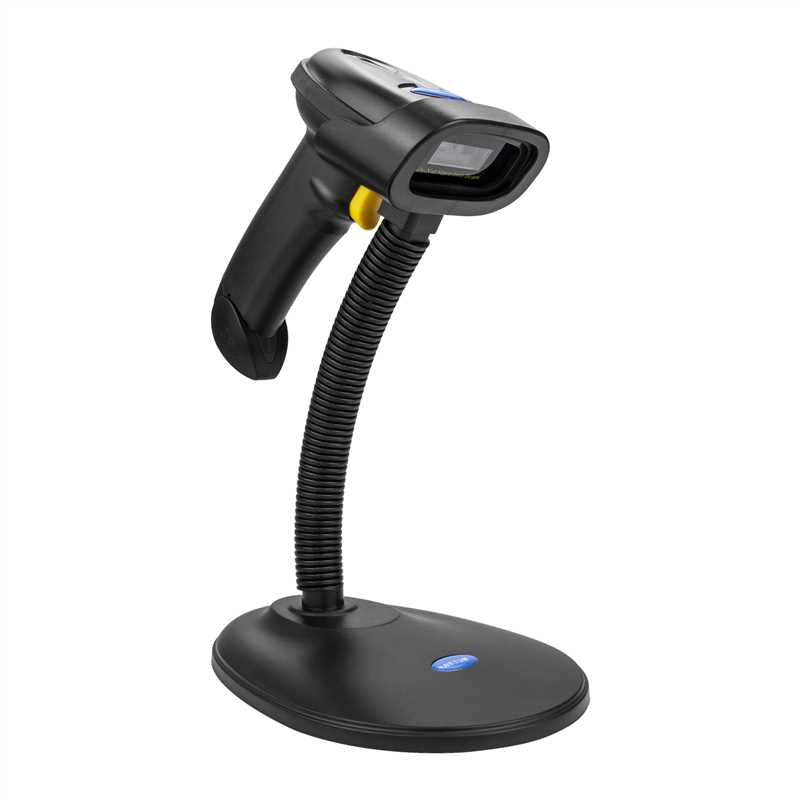

NT-1228BL Bluetooth 2D Handheld Barcode Scanner

$47.99 USD
$47.99 USD $57.99 USD
Shipping calculated at checkout.
$38.39

Buy at discounted prices

Minimum Qty Maximum Qty Discount
2 4 10% off
5 9 12% off
10 49 15% off
50 99 17% off
100 + 20% off

Small Batch Purchasing

We support small-batch purchasing, with flexible minimums starting from 5–10 units depending on the product. Pricing varies based on order quantity and the collaboration model. Please feel free to contact us for a quote.

Delivery and Shipping

Order Processing

Orders are typically processed within 1–3 business days.

Shipping Options

We offer two shipping methods: Standard Shipping and Expedited Shipping.

Small-batch orders are shipped by Expedited Shipping by default.

If an item is temporarily out of stock, production will be arranged immediately. Estimated shipping time is 1–10 days.

For full details, please review our Shipping Policy or contact us at any time.

30 Days Returns

If you’re not completely satisfied with your purchase from NETUM, you can return it for a replacement, exchange, or refund at any time within 30 days of purchase.
Read our return policy here.

Warranty

1 year warranty. No matter where you purchase it, we provide 24/7 customer support.

Overview

Note: Support shipping from overseas warehouse.

  • EU: Shipping from Czech Prague in 3-7 Working days
  • US: Shipping from Los Angeles in 3-7 Working days
  • RU: Shipping from Moscow in 5-10 Working days

--------------------------------------------------------------------------------------

Product Features:

    1.You can use the product to scan 1D or 2D barcodes from screen or paper.
    2.The scanner can connect with different kinds of devices, like laptops, tablets, phones, and POS systems.
    3.Scanner can work via Bluetooth or USB cable; Very easy for Bluetooth pairing. If you use the bar code reader via USB cable it's plug and play.
    4.This Bluetooth wireless scanner has flash memory, can store around 2000 code128.
    5.US Keyboard by default, no need to install any driver; Support HID and SPP (only for android) mode.

    Symbology:

    1D: UPC A / UPC E,EAN 8 / EAN 13,Code 128,Code 39,Code 93,Code 32,Code11,Codabar,Plessey,MSI,Interleaved 2 of 5,IATA 2 of 5,Matrix 2 of 5,Straight 2 of5,Pharmacode,RSS-14,RSS-14 Expanded,RSS-14 Limited, Composite Code -A, Composite Code -B, Composite Code

    2D: PDF417, Micro PDF417,Data Matrix, QR Code, Micro QR, Aztec, MaxiCode

    Compatible System:

    Work with device which has a USB interface , compatible with Android, IOS, windows7/10, Mac OS ,Linux etc.

    Important Note

    1. Some types of barcodes can not be decoded by scanner before programing .Like Maxi code, interleave 2 of 5, it's disabled by default.
    In this case please get the command barcodes to enable the scanner to read them.
    2. This Bluetooth 2D scanner is not good at scanning 1D long barcode ( length> 6cm); If you want to scan UPS or Fedex long 1d barcode, suggest you take Laser or CCD scanner like NT-W6.
    3. Scanner can be programmed to have functional prefix or suffix at the moment.
    4.Scanner may run out of power when you receive it. It can not read any bar codes when it's under low voltage. In this case please charge power for it for 2-3 hours before you use it.
    5. Scanner can only decode automotive QR codes with white background.

    NT-1228BL Barcode scanner specifications

    See what this scanner can do.

    Explore the performance, connectivity, power, and durability details that matter when choosing a scanner for your workflow.

    Model
    NT-1228BL
    Decode Capabilities
    1D/2D
    Scan Engine Technology
    CMOS
    Image Sensor
    CMOS
    Sensor Resolution
    CMOS 640×480
    Illumination
    White LED Red LED 0~100000 lux
    Aiming System
    Red LED
    Minimum Element Resolution
    1D≥4 mil 2D≥6 mil
    Minimum Print Contrast
    ≥25%
    Pitch / Skew / Roll Tolerance
    Roll 360°, Pitch ± 55°, Skew ± 55° 52° H:42.7° V:32.4
    Depth of Field
    EAN-13 45 mm-150 mm (13 mil) Code39 40 mm-70 mm (5 mil 10 bytes) QR Code 30 mm-240 mm (20 mil 16 bytes) Data Matrix 55 mm-85 mm (10 mil 20 bytes) PDF 417 30 mm-130 mm (6.67 mil 7 bytes)
    Supported Symbologies
    2D QR Code, Data Matrix, PDF417, Aztec 1D EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 DataBar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5
    View all specifications Show fewer specifications
    Trigger Modes
    Manual trigger, Continuous mode, Presentation mode
    Connectivity
    Wired, Wireless, 2.4 GHz, Bluetooth 2.4 GHz wireless+Bluetooth (supported versions 2.0, 3.0, 4.0, 4.2) +Wired connection
    Host Interfaces
    USB
    Wireless Range
    2.4 GHz: 100 m Bluetooth: 20 m
    Batch Memory Capacity
    64kb~2M
    Battery Capacity
    2600 mAh
    Operating Time
    3 minutes to enter standby
    Standby Timeout
    3 minutes to enter standby
    Charge Time
    4-5 hours 5V 2A
    Operating Voltage
    DC 5V±5％ 170 mA 0.6μA
    Dimensions (L × W × H)
    L × W × H (mm): 170 × 75 × 90 mm
    Weight
    Approx. 186 g
    Enclosure Material
    ABS+TPU
    Color Options
    Black
    Cable Length
    1.2 m
    Cradle / Stand Included
    No
    User Feedback
    Buzzer, LED indicator
    Drop Resistance
    2 m free-fall drop
    Operating Temperature
    -10°C-50°C
    Storage Temperature
    -20°C-70°C
    Relative Humidity
    5%-95% (non-condensing)
    Ambient Light Immunity
    0~100000 lux
    Regulatory Approvals
    CE, RoHS, FCC
    Download model specification sheet

    Downloads

    Manuals, software, and developer resources selected for this exact model.

    8 resources

    NETUM Keyboard for Android

    BLE-capable NETUM Bluetooth barcode scanners
    AppVersion 5.162024-05-05
    Android keyboard application for barcode scanners that can operate in Bluetooth BLE mode.
    Download Android APKAndroid

    Android Bluetooth BLE SDK

    BLE-capable NETUM barcode scanners
    Sdk
    Android development package for Bluetooth Low Energy scanner communication.
    Download BLE SDKAndroid

    Android Bluetooth SPP SDK

    SPP-capable NETUM barcode scanners
    Sdk
    Android development package for Bluetooth SPP scanner communication.
    Download SPP SDKAndroid

    Bluetooth SDK for Apple iOS

    Compatible NETUM Bluetooth barcode scanners
    Sdk
    iOS development package for supported NETUM Bluetooth scanners.
    Download iOS SDKiOS

    Will this barcode scanner work with my computer, mobile device, or POS system?

    Usually, yes—if the connection interface matches your device or the scanner supports USB HID keyboard mode. Some POS systems only accept approved USB VID/PID values, so they may reject an otherwise compatible HID scanner. Check which type your POS uses, or send us the POS model and software name before ordering.

    Which barcodes can it read, and can it scan from a phone or computer screen?

    Barcode support varies by model. Devices with a CMOS scanning engine can scan barcodes on a computer screen; otherwise, they cannot.

    How do I connect the scanner?

    For a wired scanner, connect the USB cable and start scanning—most models are ready to use right away. For a wireless scanner, follow the model’s manual to connect by 2.4G receiver or Bluetooth. Pairing steps can differ between models, so use the correct guide in Downloads.

    Can I scan directly into Excel, inventory software, or a POS system?

    Yes, in most cases. When the scanner is using HID keyboard mode, scanned data appears wherever the cursor is active, such as in Excel, inventory software, or a POS input field. Workflows that use serial communication, an API, or an SDK may need extra setup. Check the communication modes in the Specifications and any available software or SDK in Downloads.

    The scanner beeps, but no data appears—what should I check?

    A beep usually means the barcode was read, but the data is not reaching the active field. Click inside a blank field in Notepad, TextEdit, or your POS and scan again. Then check the USB cable, 2.4G receiver, or Bluetooth connection and confirm the correct interface mode. If it still does not work properly, please contact us and provide the scanner model, a description of the problem, and the operating system and application name.
