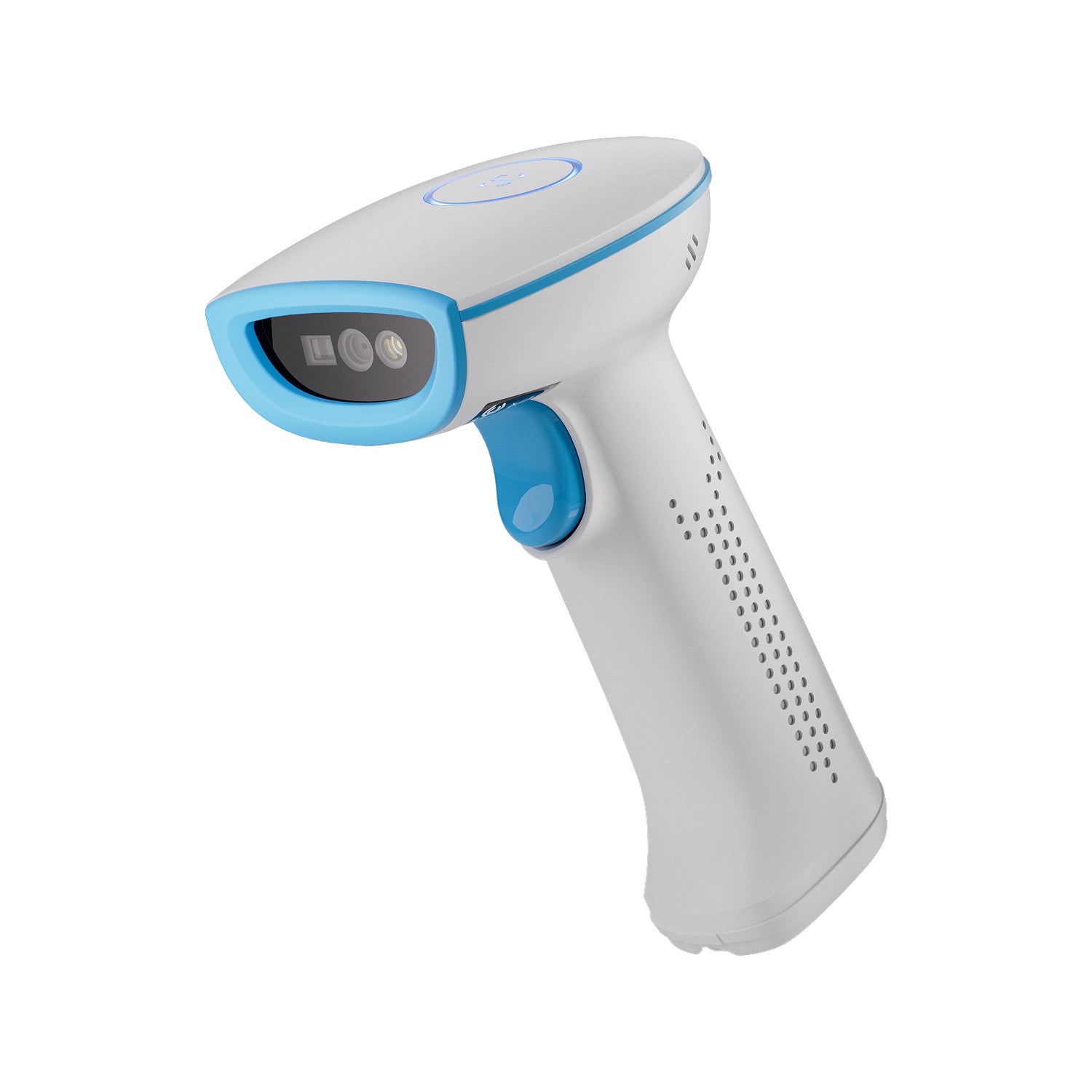

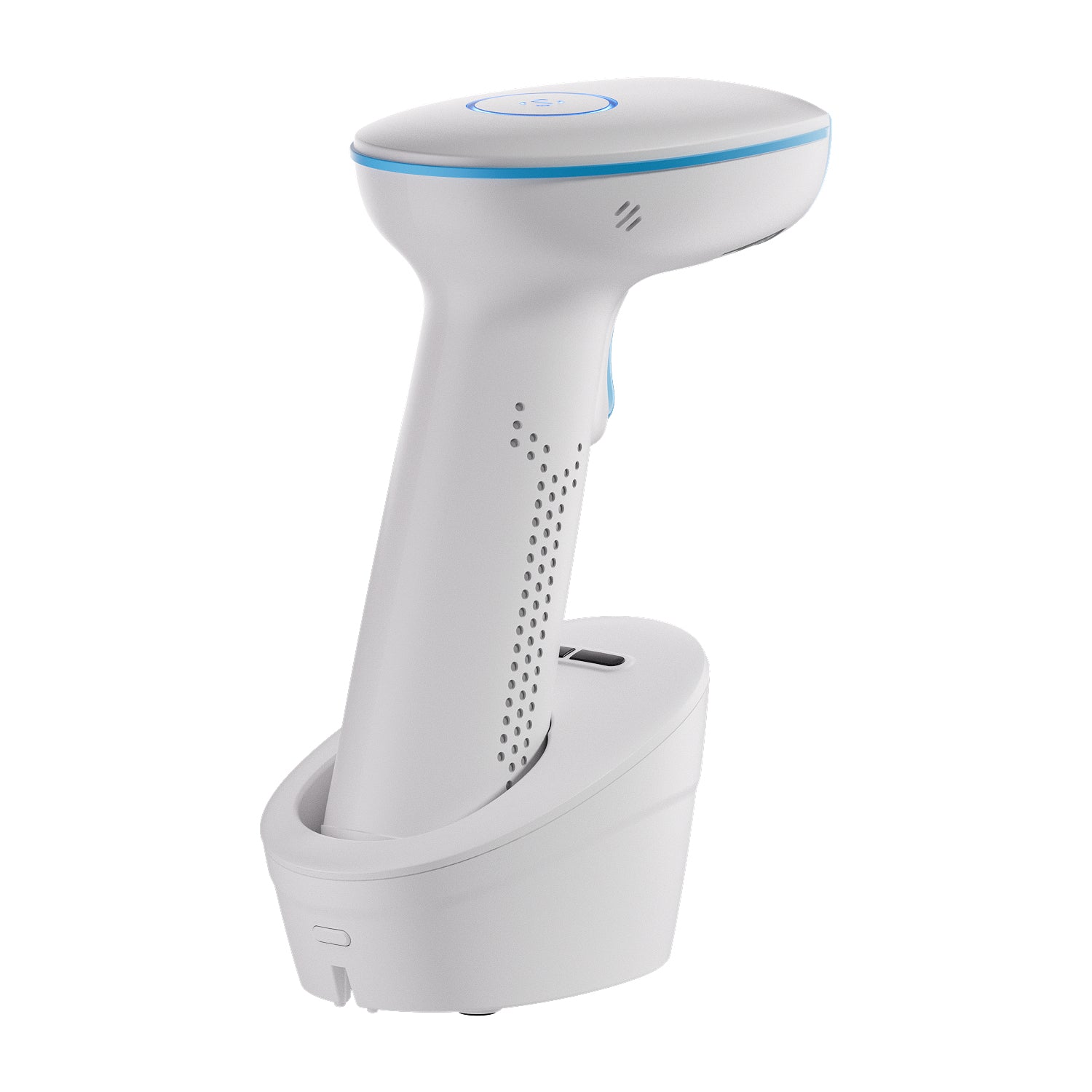

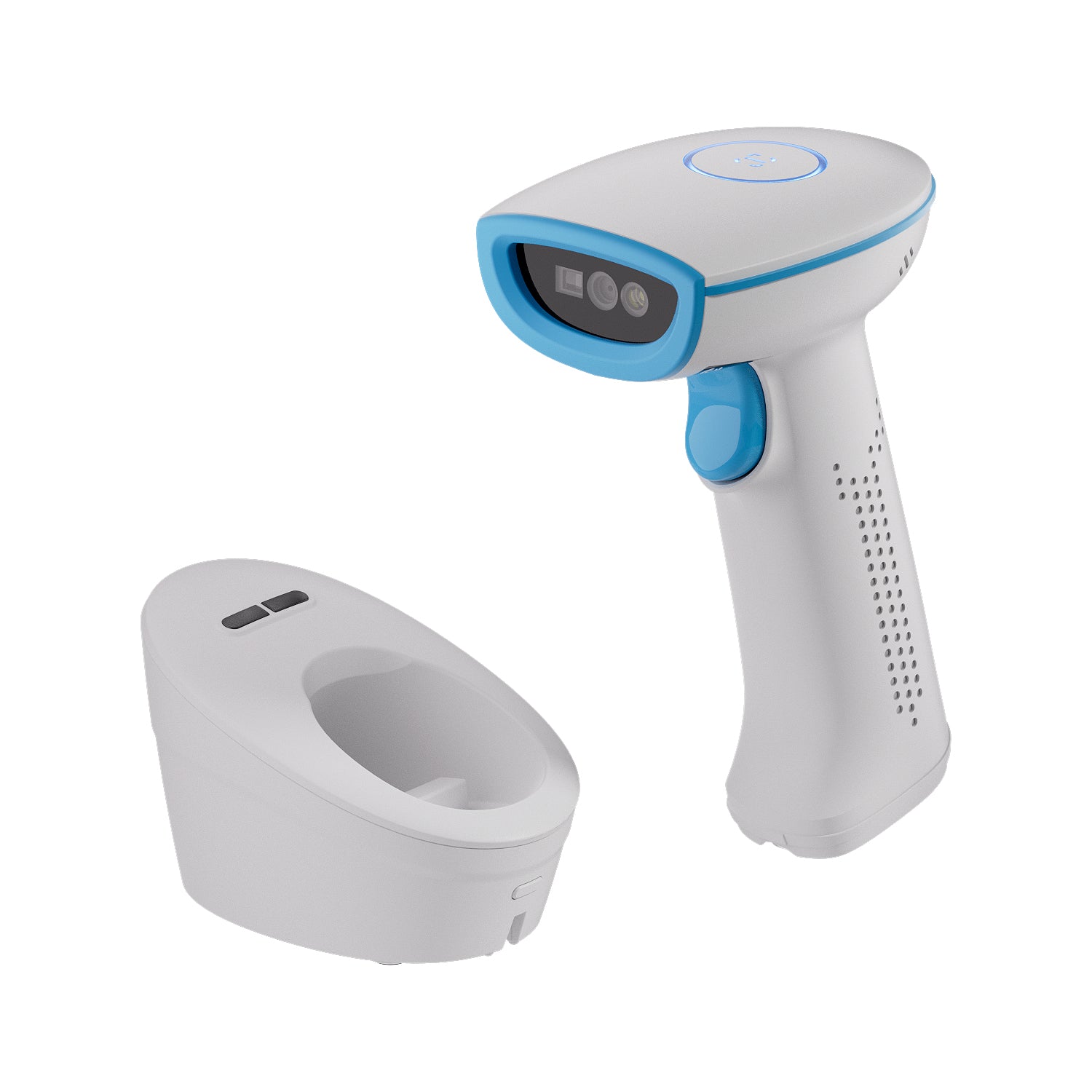

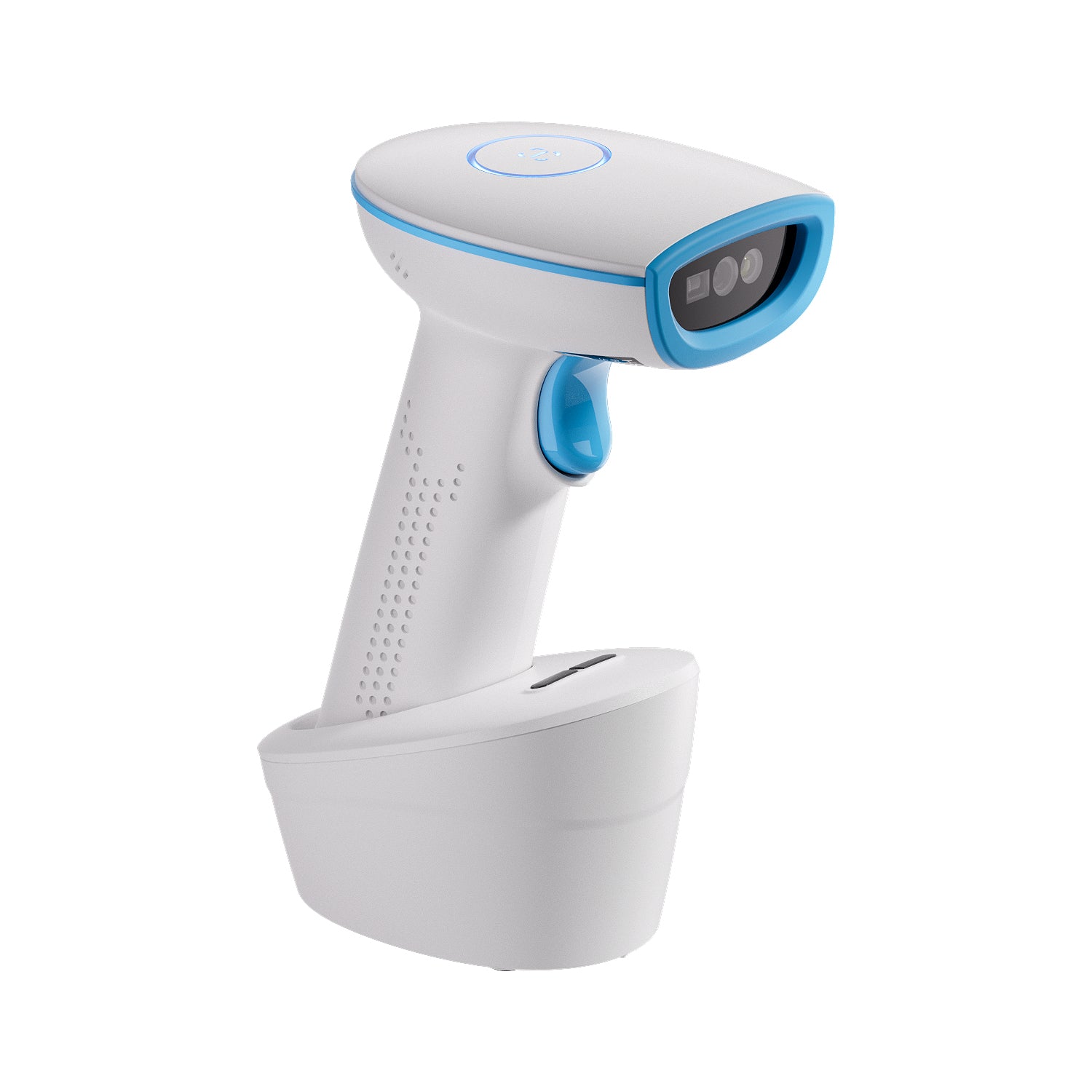

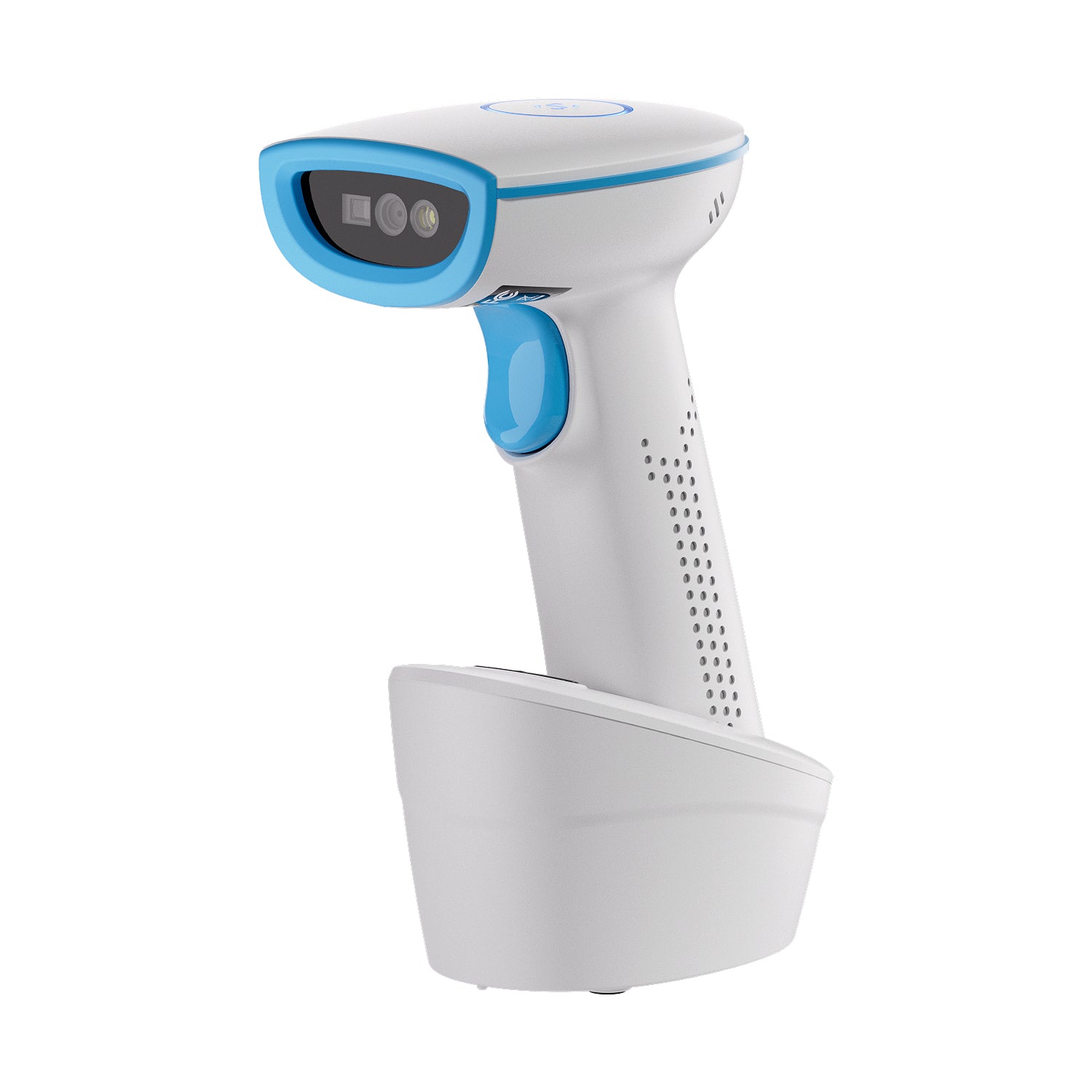

NETUM HS3250 Wireless 2D QR Barcode Scanner
The HS3250 combines a 1280 × 800 CMOS imager with 2.4GHz wireless, Bluetooth and wired connectivity. Its charging base, replaceable 3200mAh battery and ergonomic dual-material housing support demanding retail, warehouse, inventory and logistics scanning.
Key Features
- High-resolution 1280 × 800 CMOS imaging at up to 120 frames per second
- 2.4GHz wireless, Bluetooth and wired operation
- Charging base and replaceable 3200mAh lithium battery
- Up to 200 m 2.4GHz line-of-sight range and 20 m Bluetooth line-of-sight range
- Manual trigger, continuous, auto-sensing and command-triggered scanning modes
- Buzzer and vibration feedback
Scanning Performance
- Image sensor: 1280 × 800 CMOS
- Illumination: White LED; aiming: rectangular cross-laser
- Minimum resolution: 1D ≥ 3 mil; 2D ≥ 7 mil
- Scan angle: Roll 360°, pitch ±55°, skew ±55°
- Field of view: 42° horizontal × 28° vertical
- Print contrast: ≥25%
Typical Depth of Field
- Code 128 (5 mil): 40–215 mm
- Code 39 (13 mil): 75–440 mm
- EAN-13 (13 mil): 40–400 mm
- QR Code (15 mil): 20–250 mm
- Data Matrix (15 mil): 30–280 mm
Wireless & Physical
- Battery capacity: 3200mAh; charging time: approximately 5 hours
- Charging input: 5V, 1–2A
- Scanner dimensions: 157 × 70 × 95 mm
- Base dimensions: 97 × 60 × 60 mm
- Scanner weight: approximately 196 g; base weight: approximately 130 g
- Cable length: 1.2 m
- Color: Light blue TPU with white ABS
- Drop resistance: 1 m onto concrete
- Certifications: CE, RoHS and FCC
Supported Symbologies
1D: EAN, UPC, Code 39, Code 32, Code 93, Code 128, UCC/EAN-128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 DataBar, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, Matrix 2 of 5 and Febraban.
2D: QR Code, Micro QR, Data Matrix, PDF417, MicroPDF417, MaxiCode and Aztec.
